lentiCRISPRv2 hygro

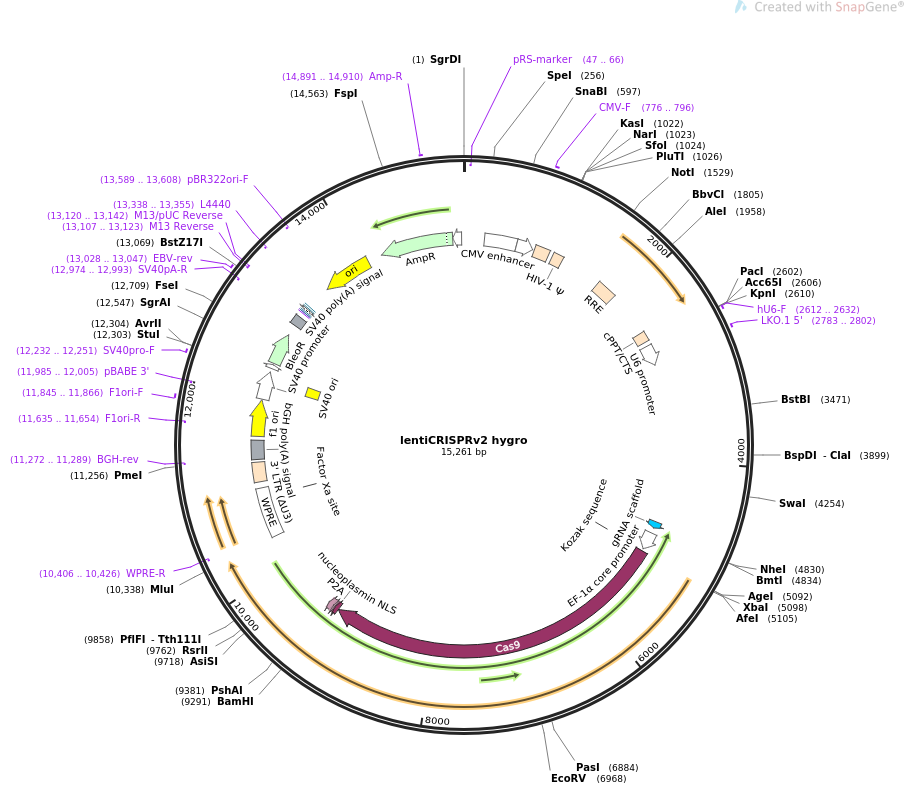

LOCUS       lentiCRISPRv2 hygro               15261 bp ds-DNA     circular SYN 09-NOV-2018
DEFINITION  Variant of lentiCRISPRv2 that confers hygromycin resistance.
ACCESSION   .
VERSION     .
KEYWORDS    lentiCRISPRv2 hygro
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 15261)
  AUTHORS   Brett Stringer
  TITLE     Brett Stringer Lab Plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 15261)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Nov 9, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..15261
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(47..66)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     enhancer        242..621
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        623..821
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     776..796
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     LTR             839..1019
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    1066..1191
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1684..1917
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    2444..2561
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     promoter        2612..2852
                     /label=U6 promoter
                     /note="RNA polymerase III promoter for human U6 snRNA"
     primer_bind     2612..2632
                     /label=hU6-F
                     /note="Human U6 promoter, forward primer"
     primer_bind     2783..2802
                     /label=LKO.1 5'
                     /note="Human U6 promoter, forward primer"
     misc_RNA        4742..4817
                     /label=gRNA scaffold
                     /note="guide RNA scaffold for the Streptococcus pyogenes
                     CRISPR/Cas9 system"
     promoter        4879..5090
                     /label=EF-1-alpha core promoter
                     /note="core promoter for human elongation factor
                     EF-1-alpha"
     regulatory      5109..5118
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             5115..9218
                     /codon_start=1
                     /product="Cas9 (Csn1) endonuclease from the Streptococcus
                     pyogenes Type II CRISPR/Cas system"
                     /label=Cas9
                     /note="generates RNA-guided double strand breaks in DNA"
                     /translation="MDKKYSIGLDIGTNSVGWAVITDEYKVPSKKFKVLGNTDRHSIKK
                     NLIGALLFDSGETAEATRLKRTARRRYTRRKNRICYLQEIFSNEMAKVDDSFFHRLEES
                     FLVEEDKKHERHPIFGNIVDEVAYHEKYPTIYHLRKKLVDSTDKADLRLIYLALAHMIK
                     FRGHFLIEGDLNPDNSDVDKLFIQLVQTYNQLFEENPINASGVDAKAILSARLSKSRRL
                     ENLIAQLPGEKKNGLFGNLIALSLGLTPNFKSNFDLAEDAKLQLSKDTYDDDLDNLLAQ
                     IGDQYADLFLAAKNLSDAILLSDILRVNTEITKAPLSASMIKRYDEHHQDLTLLKALVR
                     QQLPEKYKEIFFDQSKNGYAGYIDGGASQEEFYKFIKPILEKMDGTEELLVKLNREDLL
                     RKQRTFDNGSIPHQIHLGELHAILRRQEDFYPFLKDNREKIEKILTFRIPYYVGPLARG
                     NSRFAWMTRKSEETITPWNFEEVVDKGASAQSFIERMTNFDKNLPNEKVLPKHSLLYEY
                     FTVYNELTKVKYVTEGMRKPAFLSGEQKKAIVDLLFKTNRKVTVKQLKEDYFKKIECFD
                     SVEISGVEDRFNASLGTYHDLLKIIKDKDFLDNEENEDILEDIVLTLTLFEDREMIEER
                     LKTYAHLFDDKVMKQLKRRRYTGWGRLSRKLINGIRDKQSGKTILDFLKSDGFANRNFM
                     QLIHDDSLTFKEDIQKAQVSGQGDSLHEHIANLAGSPAIKKGILQTVKVVDELVKVMGR
                     HKPENIVIEMARENQTTQKGQKNSRERMKRIEEGIKELGSQILKEHPVENTQLQNEKLY
                     LYYLQNGRDMYVDQELDINRLSDYDVDHIVPQSFLKDDSIDNKVLTRSDKNRGKSDNVP
                     SEEVVKKMKNYWRQLLNAKLITQRKFDNLTKAERGGLSELDKAGFIKRQLVETRQITKH
                     VAQILDSRMNTKYDENDKLIREVKVITLKSKLVSDFRKDFQFYKVREINNYHHAHDAYL
                     NAVVGTALIKKYPKLESEFVYGDYKVYDVRKMIAKSEQEIGKATAKYFFYSNIMNFFKT
                     EITLANGEIRKRPLIETNGETGEIVWDKGRDFATVRKVLSMPQVNIVKKTEVQTGGFSK
                     ESILPKRNSDKLIARKKDWDPKKYGGFDSPTVAYSVLVVAKVEKGKSKKLKSVKELLGI
                     TIMERSSFEKNPIDFLEAKGYKEVKKDLIIKLPKYSLFELENGRKRMLASAGELQKGNE
                     LALPSKYVNFLYLASHYEKLKGSPEDNEQKQLFVEQHKHYLDEIIEQISEFSKRVILAD
                     ANLDKVLSAYNKHRDKPIREQAENIIHLFTLTNLGAPAAFKYFDTTIDRKRYTSTKEVL
                     DATLIHQSITGLYETRIDLSQLGGD"
     CDS             9219..9266
                     /codon_start=1
                     /product="bipartite nuclear localization signal from
                     nucleoplasmin"
                     /label=nucleoplasmin NLS
                     /translation="KRPAATKKAGQAKKKK"
     CDS             9267..9290
                     /codon_start=1
                     /product="FLAG(R) epitope tag, followed by an enterokinase
                     cleavage site"
                     /label=FLAG
                     /translation="DYKDDDDK"
     CDS             9300..9356
                     /codon_start=1
                     /product="2A peptide from porcine teschovirus-1
                     polyprotein"
                     /label=P2A
                     /note="Eukaryotic ribosomes fail to insert a peptide bond
                     between the Gly and Pro residues, yielding separate
                     polypeptides."
                     /translation="ATNFSLLKQAGDVEENPGP"
     misc_feature    10353..10941
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(10406..10426)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(10824..10835)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             11013..11246
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     primer_bind     complement(11272..11289)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    11278..11502
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      11548..11976
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(11635..11654)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     11845..11866
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(11985..12005)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        11990..12319
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      12170..12305
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     12232..12251
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     promoter        12367..12414
                     /label=EM7 promoter
                     /note="synthetic bacterial promoter "
     CDS             12433..12807
                     /codon_start=1
                     /gene="Sh ble from Streptoalloteichus hindustanus"
                     /product="antibiotic-binding protein"
                     /label=BleoR
                     /note="confers resistance to bleomycin, phleomycin, and
                     Zeocin(TM)"
                     /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD
                     VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR
                     EFALRDPAGNCVHFVAEEQD"
     polyA_signal    12937..13058
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(12974..12993)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     13028..13047
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(13107..13123)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(13107..13123)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(13120..13142)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    13131..13147
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(13155..13185)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    13200..13221
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(13338..13355)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(13509..14097)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(13589..13608)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(14268..15128)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     14891..14910
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(15129..15233)
                     /gene="bla"
                     /label=AmpR promoter
ORIGIN
        1 gtcgacggat cgggagatct cccgatcccc tatggtgcac tctcagtaca atctgctctg
       61 atgccgcata gttaagccag tatctgctcc ctgcttgtgt gttggaggtc gctgagtagt
      121 gcgcgagcaa aatttaagct acaacaaggc aaggcttgac cgacaattgc atgaagaatc
      181 tgcttagggt taggcgtttt gcgctgcttc gcgatgtacg ggccagatat acgcgcgcgt
      241 tgacattgat tattgactag ttattaatag taatcaatta cggggtcatt agttcatagc
      301 ccatatatgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
      361 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
      421 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
      481 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
      541 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
      601 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
      661 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
      721 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
      781 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gcgcgttttg cctgtactgg
      841 gtctctctgg ttagaccaga tctgagcctg ggagctctct ggctaactag ggaacccact
      901 gcttaagcct caataaagct tgccttgagt gcttcaagta gtgtgtgccc gtctgttgtg
      961 tgactctggt aactagagat ccctcagacc cttttagtca gtgtggaaaa tctctagcag
     1021 tggcgcccga acagggactt gaaagcgaaa gggaaaccag aggagctctc tcgacgcagg
     1081 actcggcttg ctgaagcgcg cacggcaaga ggcgaggggc ggcgactggt gagtacgcca
     1141 aaaattttga ctagcggagg ctagaaggag agagatgggt gcgagagcgt cagtattaag
     1201 cgggggagaa ttagatcgcg atgggaaaaa attcggttaa ggccaggggg aaagaaaaaa
     1261 tataaattaa aacatatagt atgggcaagc agggagctag aacgattcgc agttaatcct
     1321 ggcctgttag aaacatcaga aggctgtaga caaatactgg gacagctaca accatccctt
     1381 cagacaggat cagaagaact tagatcatta tataatacag tagcaaccct ctattgtgtg
     1441 catcaaagga tagagataaa agacaccaag gaagctttag acaagataga ggaagagcaa
     1501 aacaaaagta agaccaccgc acagcaagcg gccgctgatc ttcagacctg gaggaggaga
     1561 tatgagggac aattggagaa gtgaattata taaatataaa gtagtaaaaa ttgaaccatt
     1621 aggagtagca cccaccaagg caaagagaag agtggtgcag agagaaaaaa gagcagtggg
     1681 aataggagct ttgttccttg ggttcttggg agcagcagga agcactatgg gcgcagcgtc
     1741 aatgacgctg acggtacagg ccagacaatt attgtctggt atagtgcagc agcagaacaa
     1801 tttgctgagg gctattgagg cgcaacagca tctgttgcaa ctcacagtct ggggcatcaa
     1861 gcagctccag gcaagaatcc tggctgtgga aagataccta aaggatcaac agctcctggg
     1921 gatttggggt tgctctggaa aactcatttg caccactgct gtgccttgga atgctagttg
     1981 gagtaataaa tctctggaac agatttggaa tcacacgacc tggatggagt gggacagaga
     2041 aattaacaat tacacaagct taatacactc cttaattgaa gaatcgcaaa accagcaaga
     2101 aaagaatgaa caagaattat tggaattaga taaatgggca agtttgtgga attggtttaa
     2161 cataacaaat tggctgtggt atataaaatt attcataatg atagtaggag gcttggtagg
     2221 tttaagaata gtttttgctg tactttctat agtgaataga gttaggcagg gatattcacc
     2281 attatcgttt cagacccacc tcccaacccc gaggggaccc gacaggcccg aaggaataga
     2341 agaagaaggt ggagagagag acagagacag atccattcga ttagtgaacg gatcggcact
     2401 gcgtgcgcca attctgcaga caaatggcag tattcatcca caattttaaa agaaaagggg
     2461 ggattggggg gtacagtgca ggggaaagaa tagtagacat aatagcaaca gacatacaaa
     2521 ctaaagaatt acaaaaacaa attacaaaaa ttcaaaattt tcgggtttat tacagggaca
     2581 gcagagatcc agtttggtta attaaggtac cgagggccta tttcccatga ttccttcata
     2641 tttgcatata cgatacaagg ctgttagaga gataattaga attaatttga ctgtaaacac
     2701 aaagatatta gtacaaaata cgtgacgtag aaagtaataa tttcttgggt agtttgcagt
     2761 tttaaaatta tgttttaaaa tggactatca tatgcttacc gtaacttgaa agtatttcga
     2821 tttcttggct ttatatatct tgtggaaagg acgaaacacc ggagacggtt gtaaatgagc
     2881 acacaaaata cacatgctaa aatattatat tctatgacct ttataaaatc aaccaaaatc
     2941 ttctttttaa taactttagt atcaataatt agaattttta tgttcctttt tgcaaacttt
     3001 taataaaaat gagcaaaata aaaaaacgct agttttagta actcgcgttg ttttcttcac
     3061 ctttaataat agctactcca ccacttgttc ctaagcggtc agctcctgct tcaatcattt
     3121 tttgagcatc ttcaaatgtt ctaactccac cagctgcttt aactaaagca ttgtctttaa
     3181 caactgactt cattagttta acatcttcaa atgttgcacc tgattttgaa aatcctgttg
     3241 atgttttaac aaattctaat ccagcttcaa cagctatttc acaagctttc atgatttctt
     3301 cttttgttaa taaacaattt tccataatac atttaacaac atgtgatcca gctgcttttt
     3361 ttacagcttt catgtcttct aaaactaatt cataattttt gtcttttaat gcaccaatat
     3421 ttaataccat atcaatttct gttgcaccat ctttaattgc ttcagaaact tcgaatgctt
     3481 ttgtagctgt tgtgcatgca cctagaggaa aacctacaac atttgttatt cctacatttg
     3541 tgccttttaa taattcttta caatagcttg ttcaatatga attaacacaa actgttgcaa
     3601 aatcaaattc aattgcttca tcacataatt gtttaatttc agctttcgta gcatcttgtt
     3661 ttaataatgt gtgatctata tatttgttta gtttcatttt ttctcctata tattcatttt
     3721 taattttaat tctttaataa tttcgtctac tttaacttta gcgttttgaa cagattcacc
     3781 aacacctata aaataaattt ttagtttagg ttcagttcca cttgggcgaa cagcaaatca
     3841 tgacttatct tctaaataaa attttagtaa gtcttgtcct ggcatattat acattccatc
     3901 gatgtagtct tcaacattaa caactttaag tccagcaatt tgagttaagg gtgttgctct
     3961 caatgatttc attaatggtt caatttttaa tttcttttct tctggtttaa aattcaagtt
     4021 taaagtgaaa gtgtaatatg cacccatttc tttaaataaa tcttctaaat agtctactaa
     4081 tgttttattt tgttttttat aaaatcaagc agcctctgct attaatatag aagcttgtat
     4141 tccatcttta tctctagctg agtcatcaat tacatatcca taactttctt cataagcaaa
     4201 aacaaaattt aatccgttat cttcttcttt agcaatttct ctacccattc atttaaatcc
     4261 agttaaagtt tttacaatat taactccata tttttcatga gcgattctat cacccaaatc
     4321 acttgttaca aaacttgaat atagagccgg attttttgga atgctattta agcgttttag
     4381 atttgataat tttcaatcaa ttaaaattgg tcctgtttga tttccatcta atcttacaaa
     4441 atgaccatca tgttttattg ccattccaaa tctgtcagca tctgggtcat tcataataat
     4501 aatatctgca tcatgtttaa taccatattc aagcggtatt tttcatgcag gatcaaattc
     4561 tggatttgga tttacaacat ttttaaatgt ttcatcttca aatgcatgct cttcaacctc
     4621 aataacgtta tatcctgatt cacgtaatat ttttggggta aatttagttc ctgttccatt
     4681 aactgcgcta aaaataattt ttaaatcttt tttagcttct tgctcttttt tgtacgtctc
     4741 tgttttagag ctagaaatag caagttaaaa taaggctagt ccgttatcaa cttgaaaaag
     4801 tggcaccgag tcggtgcttt tttgaattcg ctagctaggt cttgaaagga gtgggaattg
     4861 gctccggtgc ccgtcagtgg gcagagcgca catcgcccac agtccccgag aagttggggg
     4921 gaggggtcgg caattgatcc ggtgcctaga gaaggtggcg cggggtaaac tgggaaagtg
     4981 atgtcgtgta ctggctccgc ctttttcccg agggtggggg agaaccgtat ataagtgcag
     5041 tagtcgccgt gaacgttctt tttcgcaacg ggtttgccgc cagaacacag gaccggttct
     5101 agagcgctgc caccatggac aagaagtaca gcatcggcct ggacatcggc accaactctg
     5161 tgggctgggc cgtgatcacc gacgagtaca aggtgcccag caagaaattc aaggtgctgg
     5221 gcaacaccga ccggcacagc atcaagaaga acctgatcgg agccctgctg ttcgacagcg
     5281 gcgaaacagc cgaggccacc cggctgaaga gaaccgccag aagaagatac accagacgga
     5341 agaaccggat ctgctatctg caagagatct tcagcaacga gatggccaag gtggacgaca
     5401 gcttcttcca cagactggaa gagtccttcc tggtggaaga ggataagaag cacgagcggc
     5461 accccatctt cggcaacatc gtggacgagg tggcctacca cgagaagtac cccaccatct
     5521 accacctgag aaagaaactg gtggacagca ccgacaaggc cgacctgcgg ctgatctatc
     5581 tggccctggc ccacatgatc aagttccggg gccacttcct gatcgagggc gacctgaacc
     5641 ccgacaacag cgacgtggac aagctgttca tccagctggt gcagacctac aaccagctgt
     5701 tcgaggaaaa ccccatcaac gccagcggcg tggacgccaa ggccatcctg tctgccagac
     5761 tgagcaagag cagacggctg gaaaatctga tcgcccagct gcccggcgag aagaagaatg
     5821 gcctgttcgg aaacctgatt gccctgagcc tgggcctgac ccccaacttc aagagcaact
     5881 tcgacctggc cgaggatgcc aaactgcagc tgagcaagga cacctacgac gacgacctgg
     5941 acaacctgct ggcccagatc ggcgaccagt acgccgacct gtttctggcc gccaagaacc
     6001 tgtccgacgc catcctgctg agcgacatcc tgagagtgaa caccgagatc accaaggccc
     6061 ccctgagcgc ctctatgatc aagagatacg acgagcacca ccaggacctg accctgctga
     6121 aagctctcgt gcggcagcag ctgcctgaga agtacaaaga gattttcttc gaccagagca
     6181 agaacggcta cgccggctac attgacggcg gagccagcca ggaagagttc tacaagttca
     6241 tcaagcccat cctggaaaag atggacggca ccgaggaact gctcgtgaag ctgaacagag
     6301 aggacctgct gcggaagcag cggaccttcg acaacggcag catcccccac cagatccacc
     6361 tgggagagct gcacgccatt ctgcggcggc aggaagattt ttacccattc ctgaaggaca
     6421 accgggaaaa gatcgagaag atcctgacct tccgcatccc ctactacgtg ggccctctgg
     6481 ccaggggaaa cagcagattc gcctggatga ccagaaagag cgaggaaacc atcaccccct
     6541 ggaacttcga ggaagtggtg gacaagggcg cttccgccca gagcttcatc gagcggatga
     6601 ccaacttcga taagaacctg cccaacgaga aggtgctgcc caagcacagc ctgctgtacg
     6661 agtacttcac cgtgtataac gagctgacca aagtgaaata cgtgaccgag ggaatgagaa
     6721 agcccgcctt cctgagcggc gagcagaaaa aggccatcgt ggacctgctg ttcaagacca
     6781 accggaaagt gaccgtgaag cagctgaaag aggactactt caagaaaatc gagtgcttcg
     6841 actccgtgga aatctccggc gtggaagatc ggttcaacgc ctccctgggc acataccacg
     6901 atctgctgaa aattatcaag gacaaggact tcctggacaa tgaggaaaac gaggacattc
     6961 tggaagatat cgtgctgacc ctgacactgt ttgaggacag agagatgatc gaggaacggc
     7021 tgaaaaccta tgcccacctg ttcgacgaca aagtgatgaa gcagctgaag cggcggagat
     7081 acaccggctg gggcaggctg agccggaagc tgatcaacgg catccgggac aagcagtccg
     7141 gcaagacaat cctggatttc ctgaagtccg acggcttcgc caacagaaac ttcatgcagc
     7201 tgatccacga cgacagcctg acctttaaag aggacatcca gaaagcccag gtgtccggcc
     7261 agggcgatag cctgcacgag cacattgcca atctggccgg cagccccgcc attaagaagg
     7321 gcatcctgca gacagtgaag gtggtggacg agctcgtgaa agtgatgggc cggcacaagc
     7381 ccgagaacat cgtgatcgaa atggccagag agaaccagac cacccagaag ggacagaaga
     7441 acagccgcga gagaatgaag cggatcgaag agggcatcaa agagctgggc agccagatcc
     7501 tgaaagaaca ccccgtggaa aacacccagc tgcagaacga gaagctgtac ctgtactacc
     7561 tgcagaatgg gcgggatatg tacgtggacc aggaactgga catcaaccgg ctgtccgact
     7621 acgatgtgga ccatatcgtg cctcagagct ttctgaagga cgactccatc gacaacaagg
     7681 tgctgaccag aagcgacaag aaccggggca agagcgacaa cgtgccctcc gaagaggtcg
     7741 tgaagaagat gaagaactac tggcggcagc tgctgaacgc caagctgatt acccagagaa
     7801 agttcgacaa tctgaccaag gccgagagag gcggcctgag cgaactggat aaggccggct
     7861 tcatcaagag acagctggtg gaaacccggc agatcacaaa gcacgtggca cagatcctgg
     7921 actcccggat gaacactaag tacgacgaga atgacaagct gatccgggaa gtgaaagtga
     7981 tcaccctgaa gtccaagctg gtgtccgatt tccggaagga tttccagttt tacaaagtgc
     8041 gcgagatcaa caactaccac cacgcccacg acgcctacct gaacgccgtc gtgggaaccg
     8101 ccctgatcaa aaagtaccct aagctggaaa gcgagttcgt gtacggcgac tacaaggtgt
     8161 acgacgtgcg gaagatgatc gccaagagcg agcaggaaat cggcaaggct accgccaagt
     8221 acttcttcta cagcaacatc atgaactttt tcaagaccga gattaccctg gccaacggcg
     8281 agatccggaa gcggcctctg atcgagacaa acggcgaaac cggggagatc gtgtgggata
     8341 agggccggga ttttgccacc gtgcggaaag tgctgagcat gccccaagtg aatatcgtga
     8401 aaaagaccga ggtgcagaca ggcggcttca gcaaagagtc tatcctgccc aagaggaaca
     8461 gcgataagct gatcgccaga aagaaggact gggaccctaa gaagtacggc ggcttcgaca
     8521 gccccaccgt ggcctattct gtgctggtgg tggccaaagt ggaaaagggc aagtccaaga
     8581 aactgaagag tgtgaaagag ctgctgggga tcaccatcat ggaaagaagc agcttcgaga
     8641 agaatcccat cgactttctg gaagccaagg gctacaaaga agtgaaaaag gacctgatca
     8701 tcaagctgcc taagtactcc ctgttcgagc tggaaaacgg ccggaagaga atgctggcct
     8761 ctgccggcga actgcagaag ggaaacgaac tggccctgcc ctccaaatat gtgaacttcc
     8821 tgtacctggc cagccactat gagaagctga agggctcccc cgaggataat gagcagaaac
     8881 agctgtttgt ggaacagcac aagcactacc tggacgagat catcgagcag atcagcgagt
     8941 tctccaagag agtgatcctg gccgacgcta atctggacaa agtgctgtcc gcctacaaca
     9001 agcaccggga taagcccatc agagagcagg ccgagaatat catccacctg tttaccctga
     9061 ccaatctggg agcccctgcc gccttcaagt actttgacac caccatcgac cggaagaggt
     9121 acaccagcac caaagaggtg ctggacgcca ccctgatcca ccagagcatc accggcctgt
     9181 acgagacacg gatcgacctg tctcagctgg gaggcgacaa gcgacctgcc gccacaaaga
     9241 aggctggaca ggctaagaag aagaaagatt acaaagacga tgacgataag ggatccggcg
     9301 caacaaactt ctctctgctg aaacaagccg gagatgtcga agagaatcct ggaccgaaaa
     9361 agcctgaact caccgcgacg tctgtcgaga agtttctgat cgaaaagttc gacagcgtgt
     9421 ccgacctgat gcagctctcg gagggcgaag aatctcgtgc tttcagcttc gatgtaggag
     9481 ggcgtggata tgtcctgcgg gtaaatagct gcgccgatgg tttctacaaa gatcgttatg
     9541 tttatcggca ctttgcatcg gccgcgctcc cgattccgga agtgcttgac attggggaat
     9601 tcagcgagag cctgacctat tgcatctccc gccgtgcaca gggtgtcacg ttgcaagacc
     9661 tgcctgaaac cgaactgccc gctgttctgc agccggtcgc ggaggccatg gatgcgatcg
     9721 ctgcggccga tcttagccag acgagcgggt tcggcccatt cggaccgcaa ggaatcggtc
     9781 aatacactac atggcgtgat ttcatatgcg cgattgctga tccccatgtg tatcactggc
     9841 aaactgtgat ggacgacacc gtcagtgcgt ccgtcgcgca ggctctcgat gagctgatgc
     9901 tttgggccga ggactgcccc gaagtccggc acctcgtgca cgcggatttc ggctccaaca
     9961 atgtcctgac ggacaatggc cgcataacag cggtcattga ctggagcgag gcgatgttcg
    10021 gggattccca atacgaggtc gccaacatct tcttctggag gccgtggttg gcttgtatgg
    10081 agcagcagac gcgctacttc gagcggaggc atccggagct tgcaggatcg ccgcggctcc
    10141 gggcgtatat gctccgcatt ggtcttgacc aactctatca gagcttggtt gacggcaatt
    10201 tcgatgatgc agcttgggcg cagggtcgat gcgacgcaat cgtccgatcc ggagccggga
    10261 ctgtcgggcg tacacaaatc gcccgcagaa gcgcggccgt ctggaccgat ggctgtgtag
    10321 aagtacttcg ccgatagacg cgttaagtcg acaatcaacc tctggattac aaaatttgtg
    10381 aaagattgac tggtattctt aactatgttg ctccttttac gctatgtgga tacgctgctt
    10441 taatgccttt gtatcatgct attgcttccc gtatggcttt cattttctcc tccttgtata
    10501 aatcctggtt gctgtctctt tatgaggagt tgtggcccgt tgtcaggcaa cgtggcgtgg
    10561 tgtgcactgt gtttgctgac gcaaccccca ctggttgggg cattgccacc acctgtcagc
    10621 tcctttccgg gactttcgct ttccccctcc ctattgccac ggcggaactc atcgccgcct
    10681 gccttgcccg ctgctggaca ggggctcggc tgttgggcac tgacaattcc gtggtgttgt
    10741 cggggaaatc atcgtccttt ccttggctgc tcgcctgtgt tgccacctgg attctgcgcg
    10801 ggacgtcctt ctgctacgtc ccttcggccc tcaatccagc ggaccttcct tcccgcggcc
    10861 tgctgccggc tctgcggcct cttccgcgtc ttcgccttcg ccctcagacg agtcggatct
    10921 ccctttgggc cgcctccccg cgtcgacttt aagaccaatg acttacaagg cagctgtaga
    10981 tcttagccac tttttaaaag aaaagggggg actggaaggg ctaattcact cccaacgaag
    11041 acaagatctg ctttttgctt gtactgggtc tctctggtta gaccagatct gagcctggga
    11101 gctctctggc taactaggga acccactgct taagcctcaa taaagcttgc cttgagtgct
    11161 tcaagtagtg tgtgcccgtc tgttgtgtga ctctggtaac tagagatccc tcagaccctt
    11221 ttagtcagtg tggaaaatct ctagcagggc ccgtttaaac ccgctgatca gcctcgactg
    11281 tgccttctag ttgccagcca tctgttgttt gcccctcccc cgtgccttcc ttgaccctgg
    11341 aaggtgccac tcccactgtc ctttcctaat aaaatgagga aattgcatcg cattgtctga
    11401 gtaggtgtca ttctattctg gggggtgggg tggggcagga cagcaagggg gaggattggg
    11461 aagacaatag caggcatgct ggggatgcgg tgggctctat ggcttctgag gcggaaagaa
    11521 ccagctgggg ctctaggggg tatccccacg cgccctgtag cggcgcatta agcgcggcgg
    11581 gtgtggtggt tacgcgcagc gtgaccgcta cacttgccag cgccctagcg cccgctcctt
    11641 tcgctttctt cccttccttt ctcgccacgt tcgccggctt tccccgtcaa gctctaaatc
    11701 gggggctccc tttagggttc cgatttagtg ctttacggca cctcgacccc aaaaaacttg
    11761 attagggtga tggttcacgt agtgggccat cgccctgata gacggttttt cgccctttga
    11821 cgttggagtc cacgttcttt aatagtggac tcttgttcca aactggaaca acactcaacc
    11881 ctatctcggt ctattctttt gatttataag ggattttgcc gatttcggcc tattggttaa
    11941 aaaatgagct gatttaacaa aaatttaacg cgaattaatt ctgtggaatg tgtgtcagtt
    12001 agggtgtgga aagtccccag gctccccagc aggcagaagt atgcaaagca tgcatctcaa
    12061 ttagtcagca accaggtgtg gaaagtcccc aggctcccca gcaggcagaa gtatgcaaag
    12121 catgcatctc aattagtcag caaccatagt cccgccccta actccgccca tcccgcccct
    12181 aactccgccc agttccgccc attctccgcc ccatggctga ctaatttttt ttatttatgc
    12241 agaggccgag gccgcctctg cctctgagct attccagaag tagtgaggag gcttttttgg
    12301 aggcctaggc ttttgcaaaa agctcccggg agcttgtata tccattttcg gatctgatca
    12361 gcacgtgttg acaattaatc atcggcatag tatatcggca tagtataata cgacaaggtg
    12421 aggaactaaa ccatggccaa gttgaccagt gccgttccgg tgctcaccgc gcgcgacgtc
    12481 gccggagcgg tcgagttctg gaccgaccgg ctcgggttct cccgggactt cgtggaggac
    12541 gacttcgccg gtgtggtccg ggacgacgtg accctgttca tcagcgcggt ccaggaccag
    12601 gtggtgccgg acaacaccct ggcctgggtg tgggtgcgcg gcctggacga gctgtacgcc
    12661 gagtggtcgg aggtcgtgtc cacgaacttc cgggacgcct ccgggccggc catgaccgag
    12721 atcggcgagc agccgtgggg gcgggagttc gccctgcgcg acccggccgg caactgcgtg
    12781 cacttcgtgg ccgaggagca ggactgacac gtgctacgag atttcgattc caccgccgcc
    12841 ttctatgaaa ggttgggctt cggaatcgtt ttccgggacg ccggctggat gatcctccag
    12901 cgcggggatc tcatgctgga gttcttcgcc caccccaact tgtttattgc agcttataat
    12961 ggttacaaat aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat
    13021 tctagttgtg gtttgtccaa actcatcaat gtatcttatc atgtctgtat accgtcgacc
    13081 tctagctaga gcttggcgta atcatggtca tagctgtttc ctgtgtgaaa ttgttatccg
    13141 ctcacaattc cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa
    13201 tgagtgagct aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac
    13261 ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt
    13321 gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga
    13381 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca
    13441 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg
    13501 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt
    13561 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc
    13621 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct
    13681 tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc
    13741 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta
    13801 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca
    13861 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag
    13921 tggtggccta actacggcta cactagaaga acagtatttg gtatctgcgc tctgctgaag
    13981 ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt
    14041 agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa
    14101 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
    14161 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
    14221 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
    14281 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
    14341 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
    14401 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
    14461 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
    14521 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
    14581 gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
    14641 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
    14701 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
    14761 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
    14821 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
    14881 tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
    14941 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
    15001 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
    15061 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
    15121 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg
    15181 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt
    15241 ccccgaaaag tgccacctga c
//
